1. F00VC30058 Injector Solenoid Valve Introduction

1.1. F00VC30058 Injector Solenoid Valve Basic Information

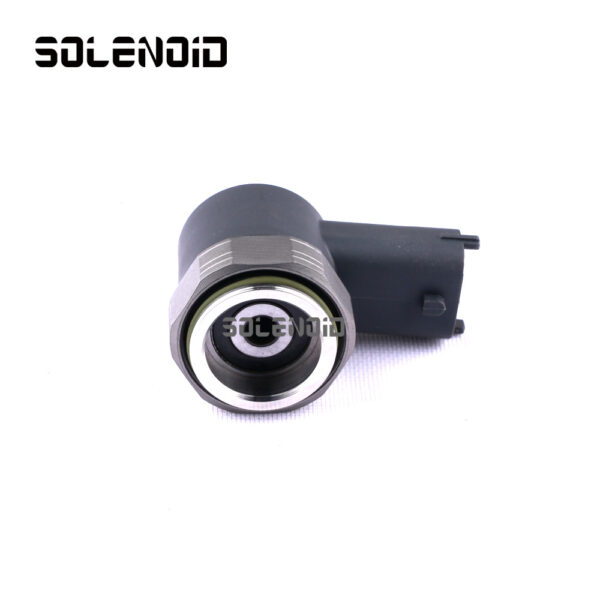

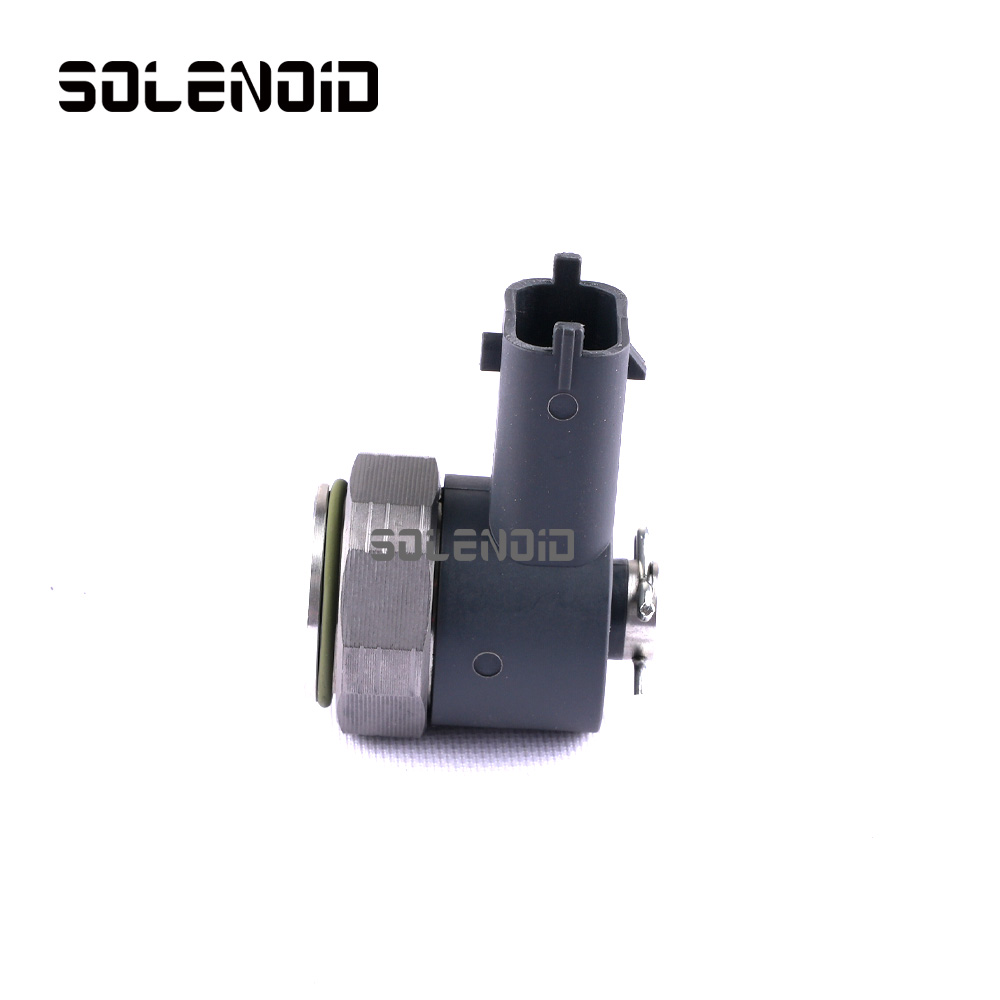

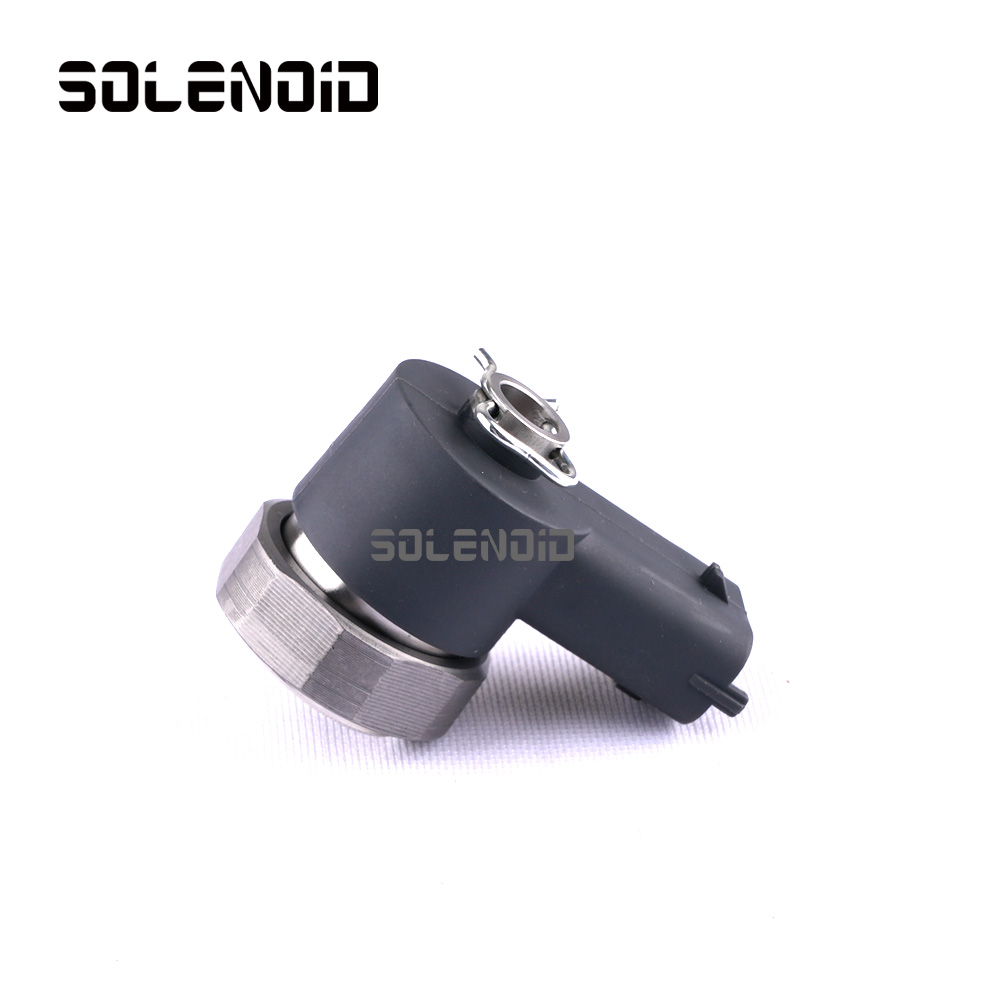

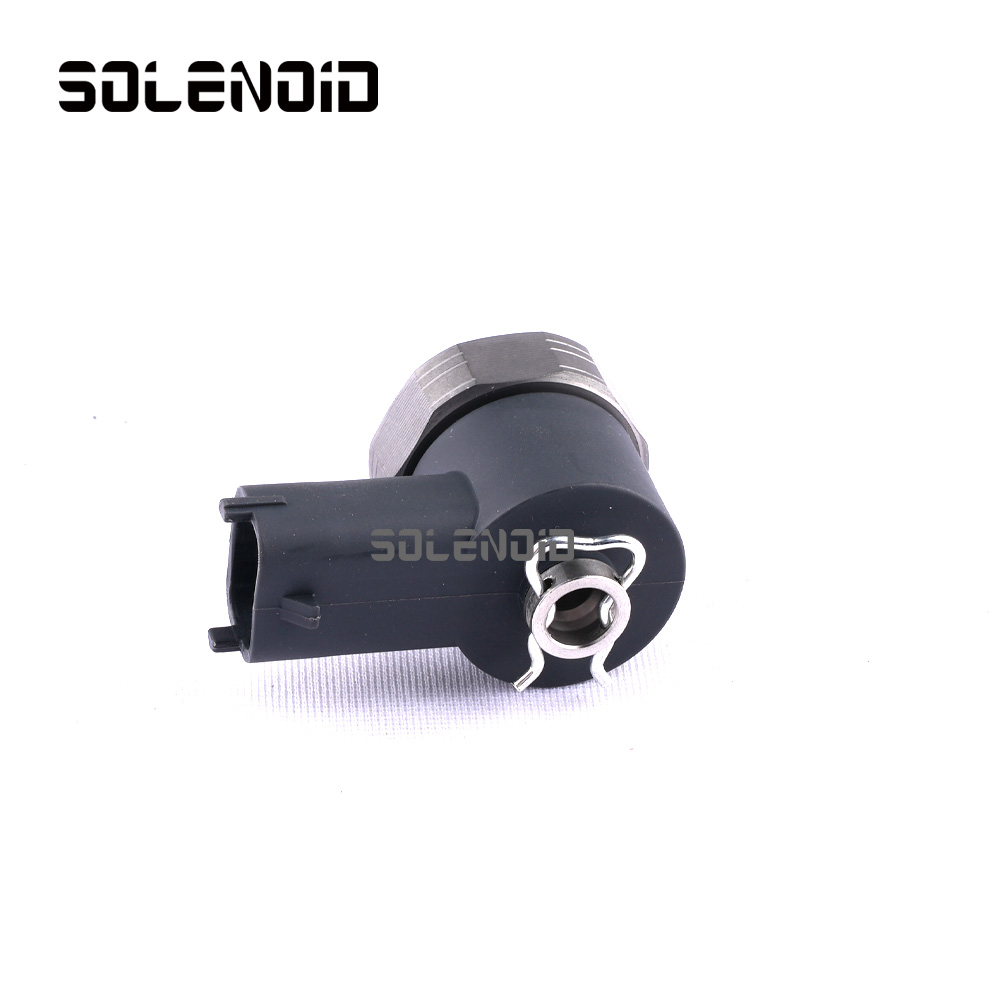

Title	F00VC30058 Injector Solenoid Valve  110 Series CRI1-13 China Made New
SKU	B20000B2BC30058



1.2. F00VC30058 Injector Solenoid Valve Applicable Injector Model

Injector Part Number	Injector Part Number	Injector Part Number	Injector Part Number
0445110038	0445110059	0445110063	0445110084
0445110087	0445110091	0445110092	/



1.3. F00VC30058 Injector Solenoid Valve Matching Information

Vehicle brand	Car Model	Engine Model	OE Number
/	Espace III 2.2 dCi	G9T…	82 00 010 074
CHRYSLER	Voyager 2.5 CRD	ENC	5066 820AA
OPEL	Movano 2.2 DTI	G9T-720	4402535
/	Avantime 2.2 DCI	G9T 712	82 00 084 534
/	Interstar 2.5 Diesel Turbo dCi 120	G9U…	9112247
/	H-1 2.5 CRDi	D4CB	33800 4A000
/	/	/	33800 4A000Y



1.4. F00VC30058 Injector Solenoid Valve Parameters

Adaptation System: Common Rail System

Injector Solenoid Valve Series: 110 series CRI1-13

Injector Solenoid Valve Type: Solenoid Type

Injector Solenoid Valve Size: 5cm* 3cm *3cm =55cm³

Individual Injector Solenoid Valve Weight: 80g

Injector Solenoid Valve With Packaging Weight: 100g

Injector Solenoid Valve Quality: China Made New

Injector Solenoid Valve Packaging Size: 7cm* 5cm *5cm

Injector Solenoid Valve Type: High Pressure Common Rail Injector Solenoid Valve

Injector Solenoid Valve Minimum Order Quantity: 1 piece



1.5. F00VC30058 Injector Solenoid Valve Customization Service

(1)Injector Solenoid Valve Customization Service Coverage: Meet OEM manufacturers’ customization needs for shell engraving, logo engraving, injector solenoid valve internal packaging, injector solenoid valve external packaging and labels, etc.

NO.	1	2
Name	Injector Solenoid Valve Assembly	Clapboard
Description	Injector solenoid valve part number: F00VC30058	Prevent contact between the positive and negative poles of the solenoid valve



(2)Injector Solenoid Valve Customization Service Requirements:

The purchase of customized injector solenoid valve is no less than 10 pieces.

The purchase of customized injector solenoid valve boxes is no less than 1000 pieces.

When the Customized products involve the need of specify logo, the OEM manufacturer is asked  to provide trademark authorization and the sample of logo image file.

Once the customized injector solenoid valve is sold, it can’t be returned or exchanged if there is no quality problems.



2. F00VC30058 Injector Solenoid Valve Technical Support

2.1. Reasons for F00VC30058 Injector Solenoid Valve Not Working Normally

(1)There is air in the oil circuit of the engine fuel system.

(2)Vehicle injector solenoid valveoil supply system is not normal.

(3)Engine common rail system oil leakage or pressure limiting valve damage.

(4)There is a short circuit, cutting out and poor contact in the wiring harness connected to the injector solenoid valveof the vehicle.

(5)The long-term placement of the injector solenoid valvecauses the anti-rust oil to solidify, and the internal components are stuck or the oil holes are blocked.

(6)Before installing, carefully check whether other components in the common rail system are damaged so as to prevent the injector solenoid valvefrom not working properly after being replaced.



3. F00VC30058 Injector Solenoid Valve Purchase And Delivery

3.1. F00VC30058 Injector Solenoid Valve Purchase And Payment Term

Payment Method: T/T, Paypal, Alipay, WeChat

• Please contact our salesmen for specific payment information.



3.2. F00VC30058 Injector Solenoid Valve Delivery Time

Delivery Time: Send out within 3 – 7 working days after receiving payment (Except for special products and special cases).



3.3. F00VC30058 Injector Solenoid Valve Logistics Time for Destination Out of China’s Areas

DHL Logistics Time:

Place Of Departure	Hong Kong	Other Countries Or Regions In Asia	Australia and New Zealand	Europe	America	Other Countries
Mainland of China	7	7	8	8	8-12	7-10



UPS Logistics Timeliness: Country or region of origin: Mainland China

Country of Destination	Estimated Arrival Time	Country of Destination	Estimated Arrival Time	Country of Destination	Estimated Arrival Time
Japan	3 Days	Britain	5-7 Days	Egypt	5-7 Days
Turkey	5-7 Days	Singapore	3 Days	Switzerland	5-7 Days
Bahrain	5-7 Days	Latvia	7-10 Days	New Zealand	7-10 Days
Sri Lanka	5-7 Days	Thailand	3 Days	Austria	5-7 Days
Romania	5-7 Days	Vietnam	3-5 Days	Estonia	5-7 Days
Malaysia	3-5 Days	Israel	5-7 Days	Mexico	7-10 Days
France	5-7 Days	USA	5-7 Days	United Arab Emirates	5-7 Days
Italy	5-7 Days	Netherlands	5-7 Days	Bengal	7-10 Days
lebanon	5-7 Days	Philippines	3-5 Days	Greece	7-10 Days
South Korea	3 Days	Spain	5-7 Days	Myanmar	5-7 Days
Canada	5-7 Days	Germany	5-7 Days	Saudi Arabia	7-10 Days
Portugal	5-7 Days	Australia	5-7 Days	South Africa	7-10 Days
Denmark	5-7 Days	Belgium	5-7 Days	Ukraine	7-10 Days
India	7-10 Days	Qatar	7-10 Days	Poland	5-7 Days
Indonesia	3-5 Days	Morocco	7-10 Days	Pakistan	7-10 Days
Kuwait	7-10 Days	/	/	/	/

The logistics time is for reference only, subjects are according to the actual arrival.
